Install VPN server on AWS EC2

Posted by Pham Minh Hiep on July 11, 2022

How to access to EC2 with private IP using Pritunl?

Install Pritunl

Prepare a EC2 machine with security group, key pair to authenticate when SSH, VPC, Public subnet, target group. Bootstrap script below:

#!/bin/bash
sudo apt update -y
sudo apt upgrade -y
echo "deb http://repo.pritunl.com/stable/apt bionic main" | sudo tee /etc/apt/sources.list.d/pritunl.list
echo "deb https://repo.mongodb.org/apt/ubuntu bionic/mongodb-org/4.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-4.0.list
sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv 9DA31620334BD75D9DCB49F368818C72E52529D4
sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv 7568D9BB55FF9E5287D586017AE645C0CF8E292A
sudo apt update -y
sudo apt install pritunl mongodb-server -y
sudo systemctl start pritunl mongodb
sudo systemctl enable pritunl mongodb
sudo sh -c 'echo "* hard nofile 64000" >> /etc/security/limits.conf'
sudo sh -c 'echo "* soft nofile 64000" >> /etc/security/limits.conf'
sudo sh -c 'echo "root hard nofile 64000" >> /etc/security/limits.conf'
sudo sh -c 'echo "root soft nofile 64000" >> /etc/security/limits.conf'

This script is run on Ubuntu 18.04. If you have any problem with python ($PYTHONHOME or $PYTHONPATH), you can try with script below:

#!/bin/bash
sudo apt-get update
sudo apt-get -y upgrade
sudo apt-get install curl gnupg2 wget unzip -y
curl -fsSL https://www.mongodb.org/static/pgp/server-4.4.asc | sudo apt-key add -
echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu focal/mongodb-org/4.4 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-4.4.list
sudo apt-get update
sudo apt-get install mongodb-server -y
sudo systemctl start mongodb
sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv E162F504A20CDF15827F718D4B7C549A058F8B6B
sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv 7568D9BB55FF9E5287D586017AE645C0CF8E292A
echo "deb http://repo.pritunl.com/stable/apt focal main" | sudo tee /etc/apt/sources.list.d/pritunl.list
sudo apt-get update
sudo apt-get install pritunl -y
sudo sudo systemctl start pritunl
sudo systemctl enable pritunl mongodb

Configure Pritunl server on EC2 instance

After installing Pritunl completely, access Pritunl Web UI via URL: https://PUBLIC_IP_EC2_MACHINE

Connecting to a Pritunl vpn server follow this docs: Connecting to Pritunl vpn server

Config Load Balancer

If you want to assign domain name for Pritunl vpn server Web UI, you can config load balancer:

sudo pritunl set app.reverse_proxy true
sudo pritunl set app.redirect_server false
sudo pritunl set app.server_ssl false
sudo pritunl set app.server_port 80

Pritunl document: Load balancing

Create VPN user

After set up successfully, create vpn user and import profile to VPN client, such as OpenVPN, Pritunl,… then try it :smile:

Some notes

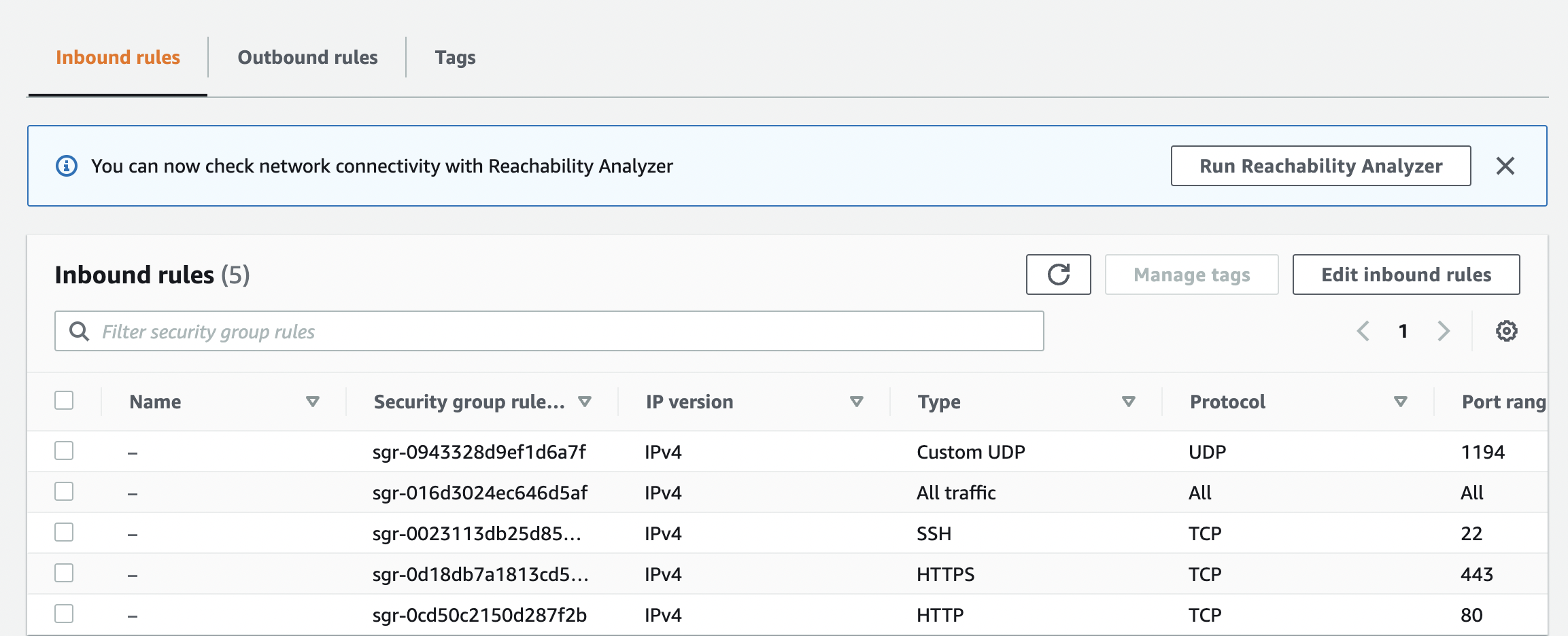

Configure Inbound rule of Security Group:

Configure security group

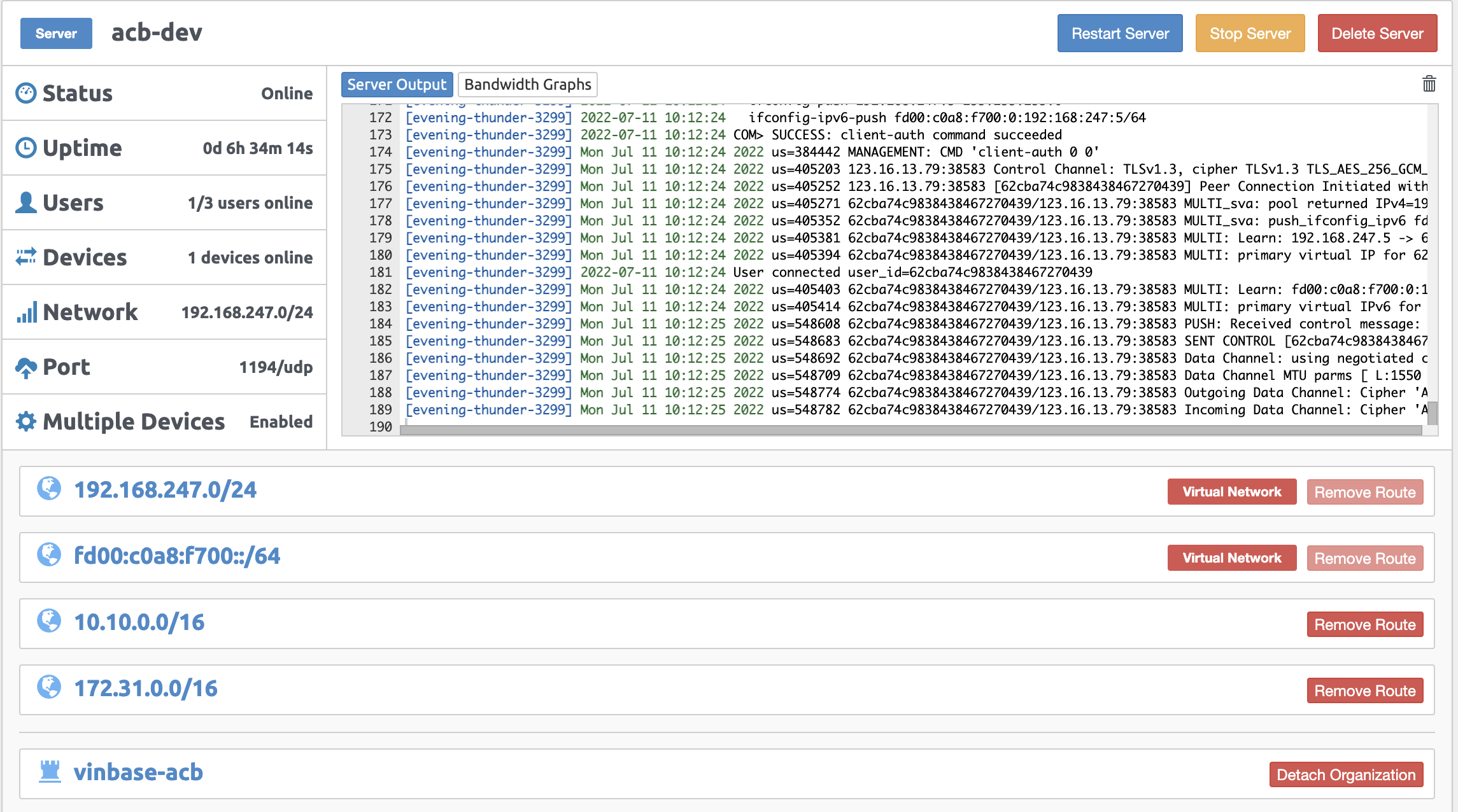

Remove default server 0.0.0.0/0, replace by your private subnet.

Config server
